Products

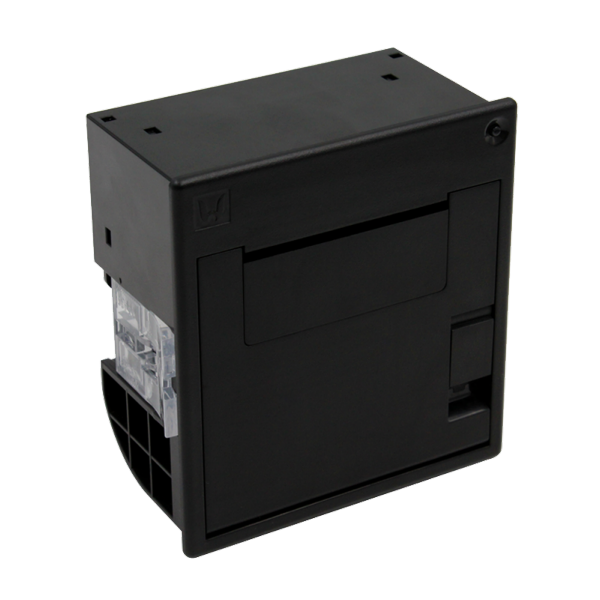

WH-C06
Features
- Support full/half cutter
- High speed, key lock structure
- Very silent printing through direct thermal printing method
- Support Serial RS-232/485/TTL, Parallel and USB interface
- Abundant figures/ curves/ characters print function
- Compatible with ESC/POS instruction set, including more fonts setting instructions
Applications
Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.
Platform
- Android
- Windows
- Linux
- WindowsCE
Specification
| Item | Specification | |
| Printing method | Direct thermal line printing | |
| Print out detection | Paper end sensors function | |
| Paper loading way | easy paper loading | |
| Paper width | 58mm | |
| Print width | 48mm | |
| Resolution ration | 203DPI | |
| Life of printing head | 50km | |
| Printing speed | 70mm/s | |
| Character | 8*16dots, 12*24dots | |
| Outline dimension | 101mm*109mm*57.5mm | |
| Installation dimension | 95mm*103mm | |
| Paper supplied | Thermal roll paper(58mm,50mmø) | |
| Interface | Serial RS-232,485, TTL/ Parallel/ USB interface | |
| Input power | DC 12 ~ 24V, 30W | |
| Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | -20℃ ~ 60℃ | |
| Operating humidity | 10% ~ 80% | |
| Storage humidity | 10% ~ 90% | |
