Products

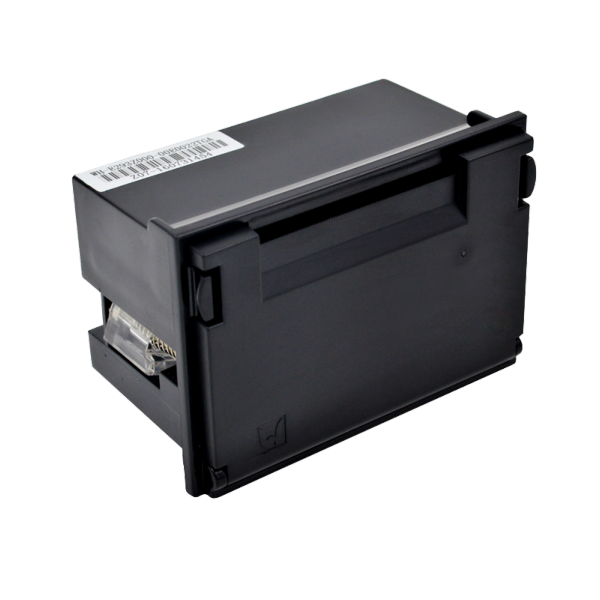

WH-E29
Features
- Stylish, delicate and elegant appearance
- Dot matrix printing
- Paper end sensors and self-motion memory printing function
- Abundant figure/ curves/ characters print function
- Add coordinate curve printing
- Serial RS-232C, 485 , TTL interface
- Easy paper loading
Applications
Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.
Platform
- Android
- Windows
- Linux
- WindowsCE
Specification
| Item | Specification | |
| Printing method | Dot matrix printing | |
| Print out detection | Paper end sensors function | |
| Paper loading way | easy paper loading | |
| Paper width | 44mm | |
| Print width | 32mm | |
| Resolution ration | 96dots/line | |
| Printing speed | 1line/sec | |
| Character | 6*12dots | |
| Chinese character library | GB2312 12*12dots | |
| Outline dimension | 82mm*56.7mm*34.7mm | |
| Installation dimension | 77mm*51.7mm | |
| Paper supplied | Plain papaer (44mm,30mmø) | |
| Interface | Serial RS-232, TTL, 485 interface | |
| Input power | DC 5V, 3A/ 9V-24V,30W | |
| Operating temperature | 0℃ ~ 50℃ | |
| Storage temperature | - 20℃ ~ 60℃ | |
| Operating humidity | 10% ~ 85% | |
| Storage humidity | 10% ~ 90% | |
