Products

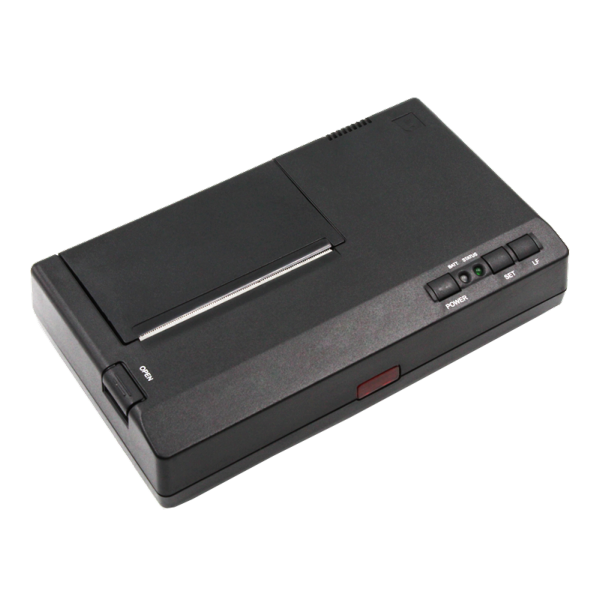

WH-M05
- Outline dimension (182.5 x 106 x 40mm)
- Very silent printing thru direct thermal printing method
- High speed (60mm/sec, MAX)
- High resolution(203dpi : 8dots/mm)
- USB / Bluetooth /Serial RS-232C / IrDa
- Paper width ( 80mm )
- Support text and grahpic printing
- Easy paper loading
- Life of printing head ( 50km )
- Charge ( Input AC 100~240V, 1.0A; Output DC8.4V,1.2A )
- Battery ( DC7.4, 1800mAh )
Applications
Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.
- Android
- Windows
- Linux
- WindowsCE
| Item | Specification | |
| Printing method | Direct thermal line printing | |
| Print out detection | Paper end sensors function | |
| Paper loading way | Easy paper loading | |
| Paper width | 80mm | |
| Print width | 72mm | |
| Resolution ration | 8dots/mm | |
| Life of printing head | 50km | |
| Printing speed | 60mm/s | |
| Charge | Input AC 100~240V,1.0A; Output DC8.4V,1.2A | |
| Battery | DC7.4V(8.4V~6.8V), 1800mAh | |
| Duration of charging | 2.5 hours | |
| Outline dimension | 182.5mm*106mm*40mm | |
| Paper supplied | Thermal paper roll (80mm, 30mmΦ) | |
| Interface | Serial RS-232C / USB / Bluetooth / IrDa | |
| Temperature | Printer -10℃～50℃ | |
| Temperature | Battery 0℃ ～40℃ | |
| Humidity | Printer 10% ~ 90% RH | |
| Humidity | Battery 20% ~ 70% RH | |
