WH-T3
Number of views:
1007

2 inch printer

Retail price
0.0
Market price
0.0

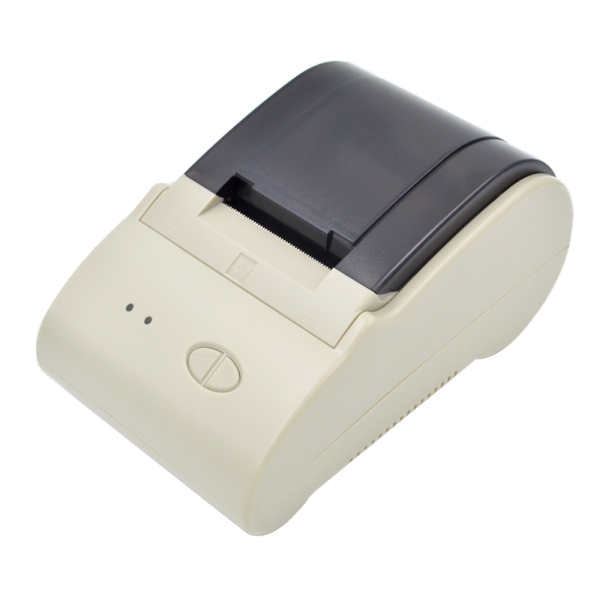

2 inch Mobile Printer 57mm wide, 60ø
Quantity
-
+
Stock:
0
Features
Features

- Stylish, delicate and elegant appearance
- Support printing dot map of different density and loaded
- Paper end sensors and paper nearly end sensors function
- Printer head overheat protect function
- Abundant figure/curves/characters print function
- Easy to operate, easy to maintain
- Easy paper loading
- Add two cashbox driver signals



Applications

Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.

Platform
  • Android
  • Windows
  • Linux
  • WindowsCE
Specification
Item Specification
Printing method   Direct thermal line printing
cashbox   Two cashbox driver signals
Paper out detection   Paper end sensors and paper nearly end sensors function
Paper loading way   Easy paper loading
Paper width   57mm
Print width   48mm
Resolution ration   8dots/mm
Life of printing head   6,000,000 character lines
Printing speed   60mm/s
Character    6*8dots, 12*24dots
Chinese character library   GBK 24*24dots
Input power   DC 9V ~ 24V, 25W
Outline dimension   116mm*184.5mm*92mm
Paper supplied   Thermal roll paper(57mm, 60mmø)
Interface   Serial RS-232,TTL/ Parallel / Bluetooth / USB interface
