WH-A9
Number of views:
1006

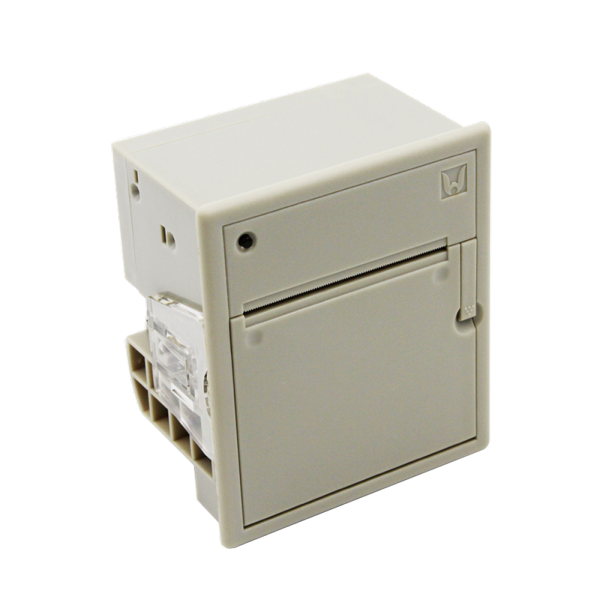

2 inch printer

Retail price
0.0
Market price
0.0
2 inch Mobile Printer 57mm wide,50ø
Quantity
-
+
Stock:
0
Features
Features

- High speed (50mm/sec, based on character ratio 25%)
- Very silent printing thru direct thermal printing
- High speed and low power consumption option
- Support 3.3V low voltage system
- Support 3.5-9V /9-24V Power
- Serial RS-232C, TTL/ Parallel interface
- Abundant figure/ curves / characters print function
- Easier paper loading
- Explosion proof certificated



Applications

Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.

Platform
  • Android
  • Windows
  • Linux
  • WindowsCE
Specification
Item Specification
Printing method   Direct thermal line printing
Print out detection   Paper end sensors function
Paper loading way   Easy paper loading
Paper width   57mm
Print width   48mm
Resolution ration   384dots/line
Life of printing head   6,000,000 character lines
Printing speed   50mm/s(when the character ratio is 25%)
Character   6*8dots, 8*16dots, 12*24dots
Chinese character library   GB2312, 16*16dots, 24*24dots
Outline dimension   84mm*98mm*57mm
Installation dimension   78mm*92mm
Paper supplied   Thermal roll paper (57mm, 30ø)
Interface   Serial RS-232, TTL/ Parallel interface
Input power   DC3.5V-9V/ 9~24V / DC 5V,15W
Operating temperature   5~ 50
Storage temperature   -20~ 60
Operating humidity   10% ~ 80%
Storage humidity   10% ~ 90%
