WH-P12
Number of views:
1009

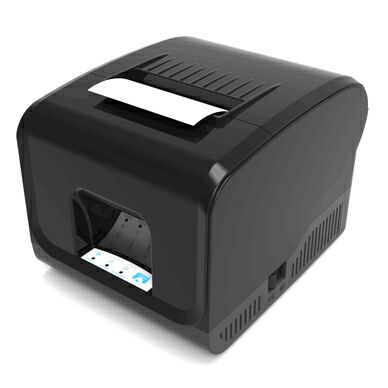

3 inch printer

Retail price
0.0
Market price
0.0
Quantity
-
+
Stock:
0
Features
Features

- High speed pringting: Training printing speed up to 220mm/s
- Nice design,easy for maintance
- ESC/POS Order
- Rich interface optional:USB,Internet,serial port
- One dimensional and two dimensional barcode printing
- Support BMP image file download to flash print
- Long life time (Printer head :150KM & Cutter: 100million times)



Applications

Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.

Platform
  • Android
  • Windows
  • Linux
  • WindowsCE
Specification
Item Specification
Printing method Direct thermal line printing
Print width 72mm
Resolution ration 576 dots/Line
Printing speed 220mm/s
Interface Cashbox+Internet access;Cash box+Serial port;Cash +USB
Cutter Half cutting
Order set ESC/POS order
Paper width 80*80mm
Row number Font A:12 line Font B/C:9 line CHN-24
Character Standard GB18030 CHN BIG5 Chinese character library
Amplification/Rot 4 timesRotate angle90°180°
Graphics Support BMP image file download to flash print.
Cash box output DC 12V/24V/1A
Power adapter InputAC 110V/220V50 ~ 60Hz OutputDC 24/2A
Net weight 0.928kg
Outline dimension 188×150×134mm(L×W×H)
Operating Temperature & Humidity 0 ~ 5035 ~ 85%;
Storage Temperature & Humidity -20 ~ 6035 ~ 95% (Non-condensate)
Driver support Windows system
