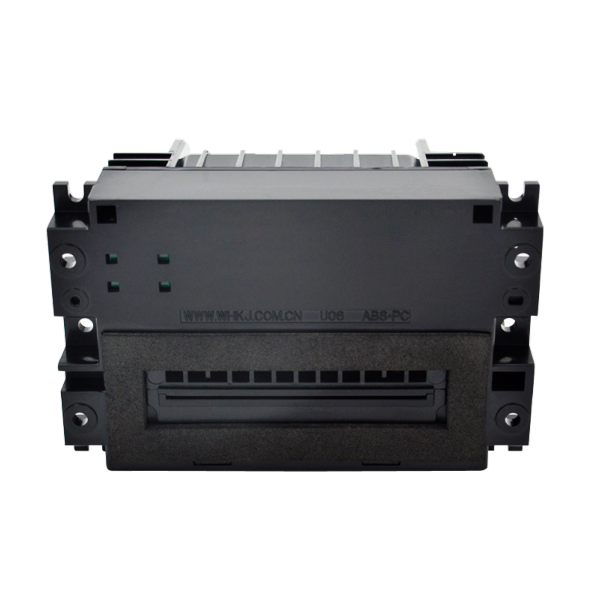

WH-U06

undefined
+
  • undefined
Features
Features

- Compact design, stylish, delicate and elegant appearance
- Support full/half cutter
- Very silent printing through direct thermal printing method
- Support Serial RS-232C/TTL/485 interface
- Abundant figures/curves/characters print function
- Compatible with ESC/POS instruction set, including more fonts setting instructions



Applications

Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.

Platform
  • Android
  • Windows
  • Linux
  • WindowsCE
Specification
Item Specification
Printing method   Direct thermal line printing
Print out detection   Paper end sensor function
Paper loading way   Easy paper loading
Paper width   58
Print width   48
Resolution ration   203 DPI
Life of printing head   50 km
Printing speed   90mm/s
Character   8*16dots,12*24dots
Outline dimension   68.8mm*109.6mm*72.5mm
Paper supplied   Thermal roll paper (58mm, 50mmø)
interface   Serial RS-232C/ TTL/ 485
Input power   DC 12V ~ 24V, 30W

Operating temperature

  5 ~ 50
Storage temperature   -20℃ ~ 60
Operating humidity   10% ~ 80%
Storage humidity   10% ~ 90%
